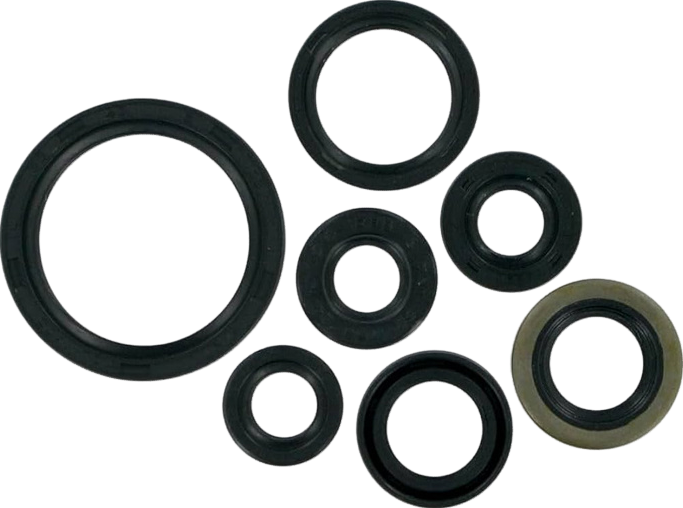

An oil seal, also known as a rotary shaft seal, is a critical component used in various mechanical systems to prevent fluid leakage and contamination. It is designed to seal the gap between a rotating shaft and a stationary housing, ensuring that lubricants such as oil or grease remain inside the system while keeping contaminants out.
Key Components and Structure
An oil seal typically consists of the following main components:
1. Lip (Sealing Edge): The lip is the most crucial part of the oil seal. It is usually made from elastomeric materials such as nitrile rubber (NBR), fluoroelastomer (FKM), or silicone rubber. The lip is designed to maintain contact with the rotating shaft, creating a tight seal to prevent fluid leakage.
2. Metal Case:The metal case provides structural support and rigidity to the oil seal. It is typically made from steel or brass and helps to hold the seal in place within the housing.
3. Spring:A spring is often incorporated into the design to apply constant pressure on the lip, ensuring consistent contact with the shaft. This helps to maintain a reliable seal even under varying operating conditions.
4.Garter Spring (Optional): In some designs, a garter spring is used to provide additional tension to the lip, further enhancing the sealing performance.
How Oil Seals Work
The primary function of an oil seal is to prevent the escape of lubricants and the ingress of contaminants such as dust, dirt, and moisture. When a shaft rotates, the lip of the oil seal maintains contact with the shaft surface, creating a dynamic seal. The pressure from the spring ensures that the lip remains in close contact with the shaft, even if there are slight imperfections or vibrations.
The sealing mechanism relies on the flexibility of the elastomeric material and the mechanical support from the metal case. The lip conforms to the shaft surface, creating a barrier that prevents fluid from escaping while also blocking contaminants from entering the system.
Types of Oil Seals
1. Single-Lip Oil Seals: These are the most common type, featuring a single sealing lip. They are suitable for applications where the primary concern is preventing fluid leakage.
2. Double-Lip Oil Seals: These seals have two lips—one for sealing fluid and the other for excluding contaminants. They provide enhanced protection against contamination and are often used in harsh environments.
3. Non-Spring Loaded Oil Seals: These seals do not have a spring and rely solely on the elasticity of the lip material to maintain contact with the shaft. They are typically used in low-speed applications.
4.Spring-Loaded Oil Seals: These seals incorporate a spring to apply constant pressure on the lip, ensuring a reliable seal even under varying operating conditions. They are suitable for high-speed applications.
Applications
Oil seals are used in a wide range of industries and applications, including:
1. Automotive: Used in engines, transmissions, differentials, and power steering systems to prevent oil leakage and contamination.
2. Industrial Machinery: Found in gearboxes, pumps, and motors to protect against fluid loss and contamination.
3. Agricultural Equipment: Used in tractors, harvesters, and other machinery to ensure reliable operation in dusty and dirty environments.
4. Aerospace: Critical in aircraft engines and hydraulic systems to maintain fluid integrity and prevent contamination.
5.Marine: Used in marine engines and propulsion systems to prevent water ingress and lubricant leakage.
Material Selection
The choice of material for oil seals depends on the specific application requirements, including temperature range, chemical compatibility, and operating speed. Common materials include:
Nitrile Rubber (NBR): Suitable for applications involving mineral oils and greases. It offers good resistance to petroleum-based fluids and operates well in a wide temperature range.
Fluoroelastomer (FKM): Provides excellent resistance to high temperatures and aggressive chemicals, making it ideal for demanding applications such as automotive engines and industrial processes.
Silicone Rubber: Known for its excellent temperature resistance and flexibility, it is often used in applications involving extreme temperatures.
Polytetrafluoroethylene (PTFE): Offers superior chemical resistance and high-temperature performance, making it suitable for highly corrosive environments.
Maintenance and Replacement
Regular maintenance and timely replacement of oil seals are crucial to ensure the reliability and longevity of mechanical systems. Signs of wear or damage, such as leakage or contamination, indicate that the oil seal needs to be replaced. Proper installation is also essential to ensure the seal functions correctly and maintains its integrity.
In summary, oil seals are vital components in numerous mechanical systems, providing essential sealing functions to prevent fluid leakage and contamination. Their design, materials, and applications vary widely, making them indispensable in industries ranging from automotive to aerospace.
As technology advances, oil seals are becoming more sophisticated and durable. New materials and manufacturing processes are enhancing the performance and longevity of these critical components. For example, advanced polymers and composites are being developed to offer superior resistance to wear, c
Oil seals are designed to operate in various environmental conditions, including exposure to UV radiation, ozone, and other corrosive substances. Materials like fluoroelastomer (FKM) and polyurethane offer superior resistance to these environmental factors, making them suitable for outdoor applicati
Oil seals can be customized to meet specific application requirements. This includes different materials, sizes, and configurations. Customization ensures that the seal provides the best fit and performance for the application, reducing maintenance costs and extending equipment life. By working with
